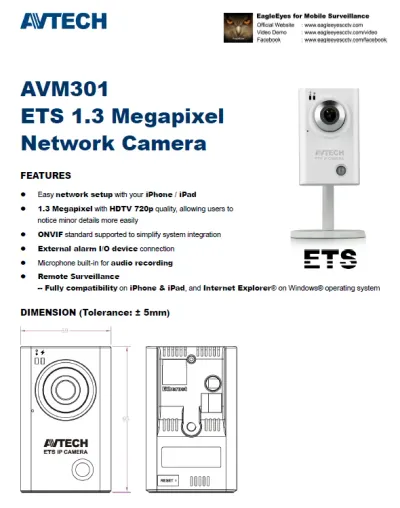

AVTech AVM301Z ETS 1.3 Megapixel Network Camera

FEATURES
 Easy network setup with your iPhone / iPad
 1.3 Megapixel with HDTV 720p quality, allowing users to
notice minor details more easily
 ONVIF standard supported to simplify system integration
 External alarm I/O device connection
 Microphone built-in for audio recording
 Remote Surveillance
-- Fully compatibility on iPhone & iPad, and Internet Explorer® on Windows® operating system

SPECIFICATIONS
▓ Network
Network Compression H.264 / MPEG4 / MJPEG
Multiple Video Streaming
(Encode Modes, IPS, Resolution)
3 (H.264, MJPEG, MPEG4)
LAN Port YES
LAN Speed 10/100 Based-T Ethernet
Supported Protocols
DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP,
ICMP, SMTP, FTP, HTTP, RTP, RTSP, UPnP
ONVIF Compatible YES (Profile S)
Frame Rate NTSC: 30, PAL: 25
Number of Online Users 10
Security
(1) Multiple user access levels with password
(2) IP address filtering
(3) HTTPS
(4) Digest authentication
Remote Access
(1) Internet Explorer on Windows operating system
(2) 16CH Video Viewer on Windows & MAC operating system
(3) EagleEyes on iPhone, iPad & Android mobile devices
▓ Camera
Image Sensor 1/4" SONY CMOS image sensor
Video Resolution SXGA, 720P, VGA, QVGA
Min Illumination 0.1 Lux / F1.5
Shutter Speed 1/2 to 1/10,000 sec
S/N Ratio More than 48dB (AGC off)
Lens f3.8mm / F1.5
Viewing Angle 62.7° (Diagonal) / 53.7° (Horizontal) / 34.1° (Vertical)
White Balance ATW
AGC Auto
IRIS Mode AES
PIR Sensor
Detection Range 76 wide angle with up to 6m long distance at 2m
height (under 30C)
External Alarm I/O YES
Microphone YES
Power Source (±10%) 5V / 1A
Operating Temperature 0℃~40℃
▓ Others
Mobile Surveillance iPad / iPhone / Android mobile device
RTC (real-time clock) YES
Motion Detection YES
Digital Pan / Tilt / Zoom YES
Event Notification FTP / Email
Minimum Web
Browsing Requirements
‧Pentium 4 CPU 1.3 GHz or higher, or equivalent AMD
‧256 MB RAM
‧AGP graphics card, Direct Draw, 32MB RAM
‧Windows 7, Vista & XP, DirectX 9.0 or later
‧Internet Explorer 7.x or later

* The specifications are subject to change without notice.
